Gas mixing device

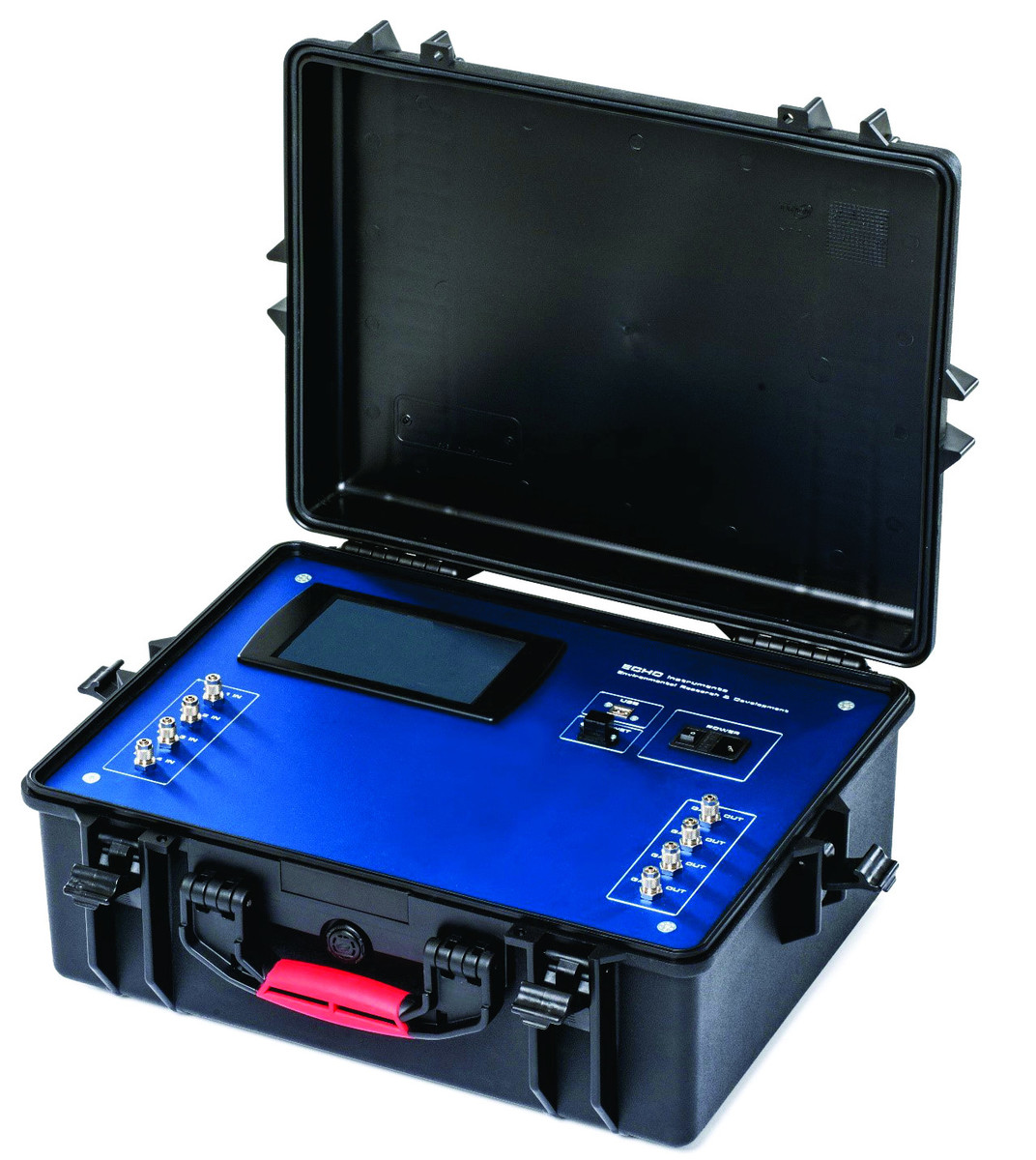

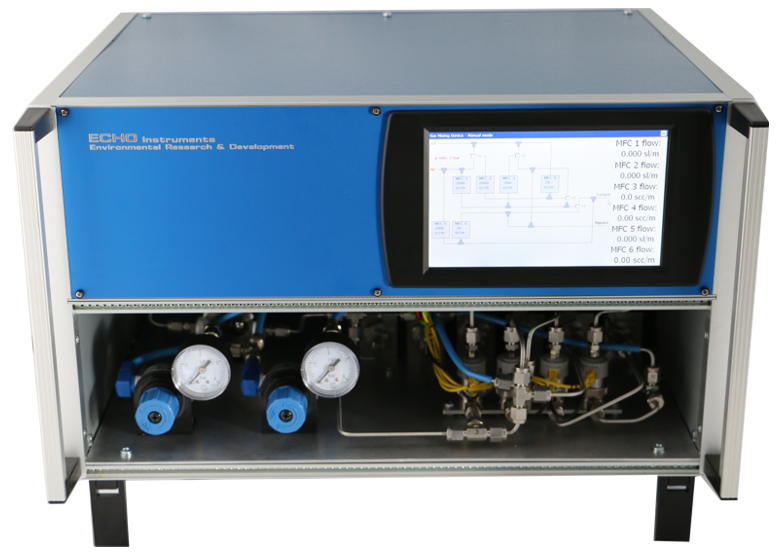

Stationary / Portable gas mixing device

Gas mixing devices are used for high precision control of gas mixtures in calibration procedures and preparing gas mixtures for industrial or laboratory use. Precise dilution of various gases enables the user to obtain the most accurate gas mixture for the used application. The user simply sets the target output concentration for the desired gas. Actual concentrations based on ﬂow measurements are displayed in real-time during mixing.

Applications

Gas mixtures for sensor calibration;
Calibration of personal gas monitors;
Calibration of emission & imission monitors;
Gas mixtures for industrial, laboratory use;
Applicable also in biotechnology, pharmacy, chemical, and biological experiments.

Advantages

Mixing non-corrosive and corrosive gases, such as SO₂, NO, NO₂, Cl₂, H₂S, etc;
1–4 channels;
High accuracy and repeatability;
Stationary or portable;
Mixtures from 100 % to ppm ranges;
Suitable for accredited calibrations.

Technical specifications

Accuracy: ±1 % of full-scale including linearity over 15–25 °C and 0.7–4 bar;
±2 % of full-scale including linearity over 0 °C to 50 °C and 0.3–10 bar;
±1 % of full-scale accuracy at a specific temperature and pressure is available with special calibration;
Reproducibility: ±0.25 % full-scale (± 0.15 % full-scale on demand);
Response time: 300 ms;
Flow range: 0–10 sccm to 0–50 slpm; flow ranges specified are for an equivalent flow of nitrogen at 760 mm Hg and 21 °C;
Response time: 300 ms, 2 s average;
Higher accuracy, repeatability, measuring ranges, response time on demand.

Modularity

Various gas sensors combined with highly accurate mass ﬂow controllers and sophisticated software mix the gas mixture from 100 % down to 1 ppm.

Download

Echo Instruments - Product catalogue (Gas mixing device) [pdf, 17.78 MB]
