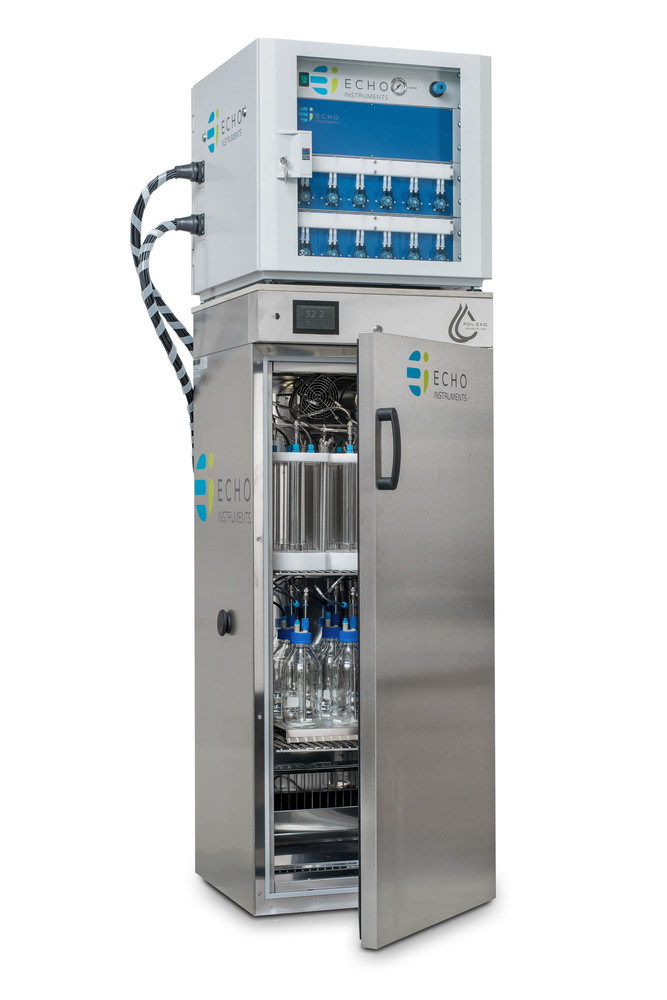

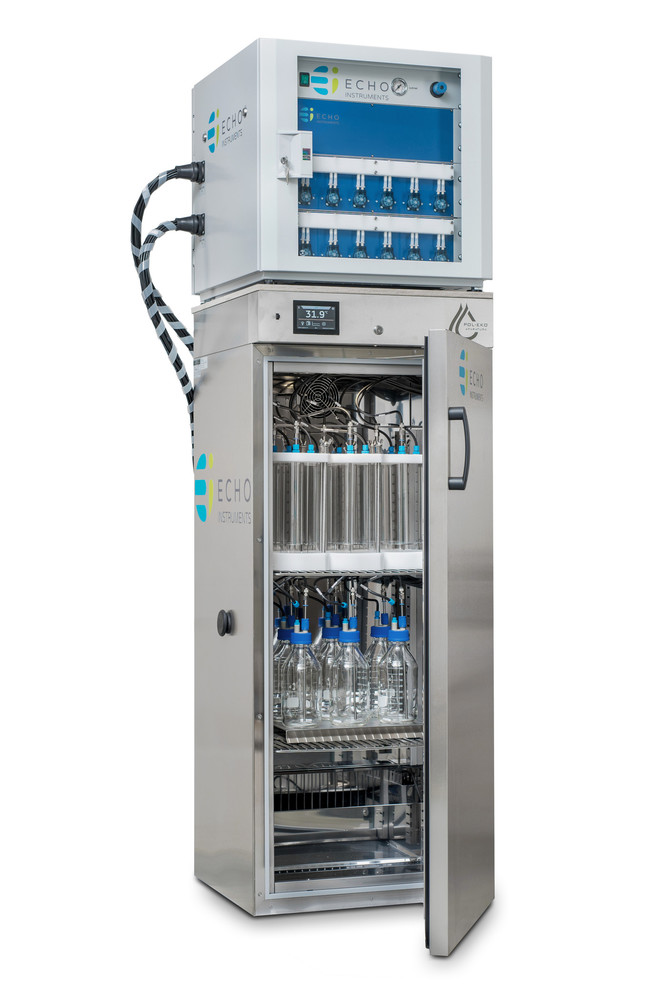

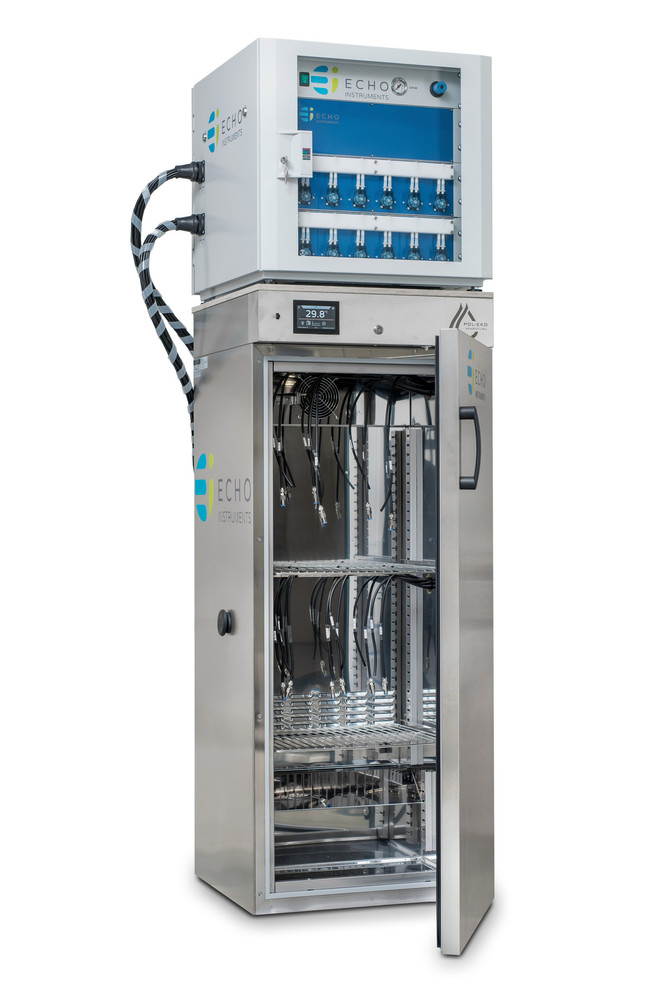

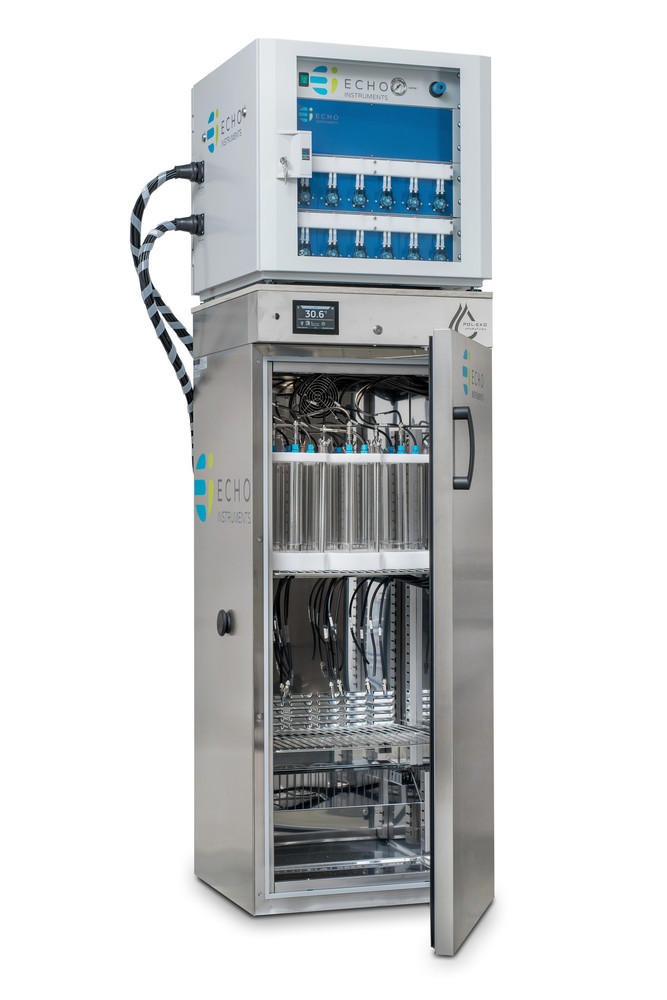

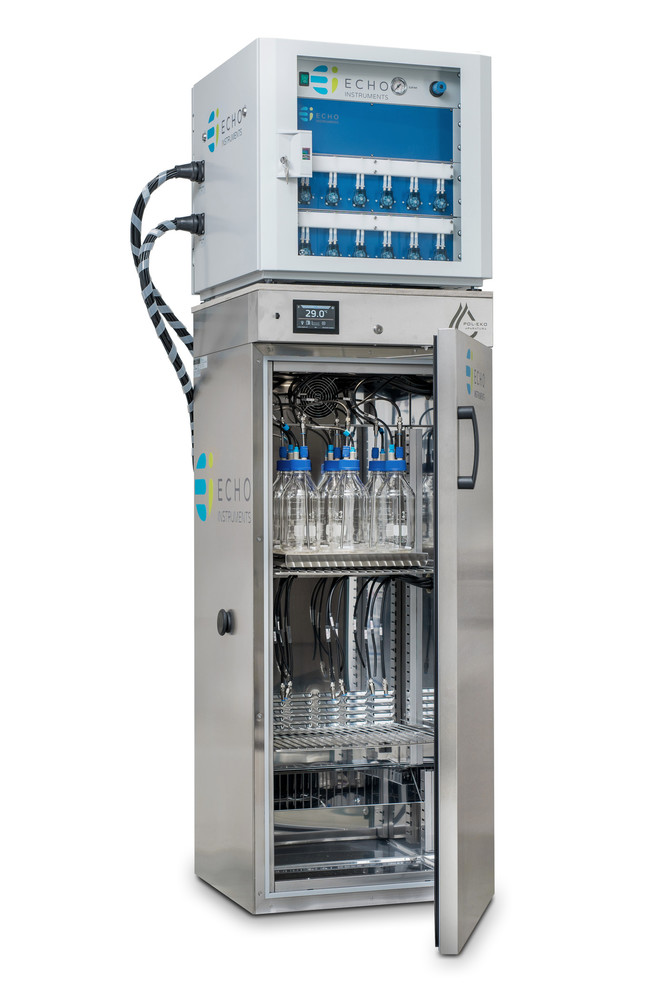

Respirometer ER series

System for measuring CO₂ production in the process of biodegradation to determine biodegradability of the sample

Respirometer is a device that measures the respiration of living organisms. Respirometer determines the aerobic or anaerobic biodegradability of solid, liquid and algae samples in various applications. The system measures the concentration of O₂ and CO₂ in the flow through the sample under controlled conditions. Flow, temperature, pressure, humidity are also continuously measured. Software automatically calculates CO₂ production and % biodegradation. Additional gases can also be measured.

Applications

Biodegradation in compost (ISO 14855-1, ASTM D 5338 , ISO 16929);
Biodegradation in soil (ISO 17556);
Biodegradation in marine waters (ASTM D6691, OECD 301B);
Biodegradation in fresh waters (ISO 14852, OECD 301B);
Biodegradation in waste waters (ISO 14852, OECD 301B);
Biodegradation in sediments;
Biodegradation in activated sludge;
Biodegradation in algae environment;
Measuring δ¹³C Isotope ON-LINE;
Organic waste biodegradation measurements (ISO 16929);
Insects and small animals respirometry;
Food respiration, R&D in plastics, biotechnology;
Aerobic and anaerobic conditions;
And many more.

MEASURING δ¹³C ISOTOPE ON-LINE:

Connect δ¹³C isotope analyzer to ER Respirometer for precise on-line biodegradation measurements

Software integration between analyzers;
Biodegradation in compost;
Biodegradation in soil;
Biodegradation in marine waters;
Biodegradation in fresh waters;
Biodegradation in waste waters;
Biodegradation in sediments;
Biodegradation in algae environment;
Certification measurements;
Modular and upgradable;
Suitable for various applications.

Advantages

Modular design (upgradable);
O₂ and CO₂ sensors installed;
On-line biodegradation measurements;
Optional sensors: CH₄, H₂S, H₂, NH₃;
Plug & Play system;
Temperature range from +3°C to +70°C;
Aerobic or anaerobic measurements;
Air source (compressor) included;
12 / 24 / 36 / 48 / 60 channel systems;
Internal air supply connection;
Laboratory or industrial use;
Various sizes of vessels;
MFC (mass flow controller) for each channel;
Vessels with illumination;
Various flow configuration;
No special connections required;
Flow leakage alarm;
Remote control software;
Automatic humidification;
Data export in MS Excel;
Multitube cable connections;
Calculation of CO₂ production;
Customizable;
Calculation of biodegradation %.

Technical specifications

O₂ and CO₂ sensors (additional sensors on request);
MFC ± 1.5 % full-scale: 0–200 mL/min, 0–500 mL/min or 0–1000 mL/min;
Connecting multicore cables;

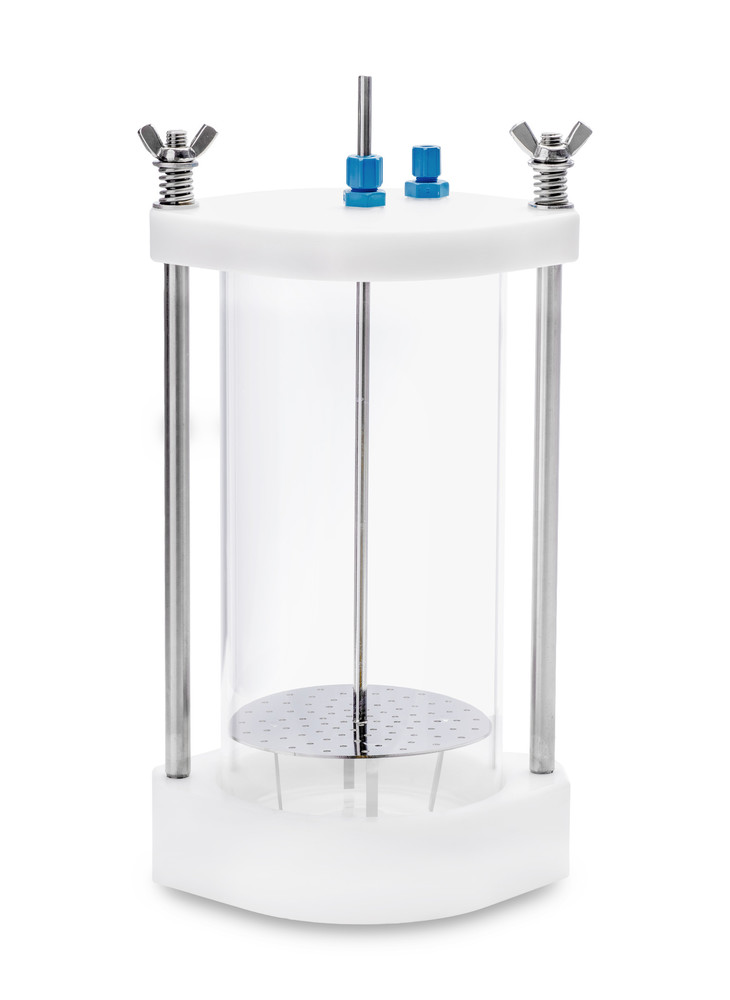

Vessels for solid samples – 2.8 L;

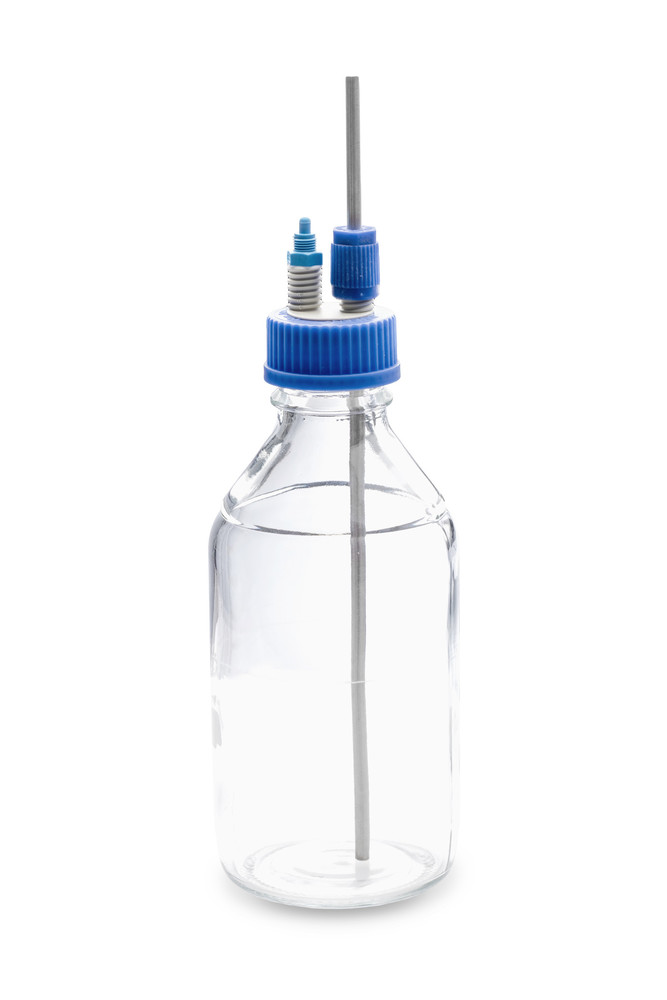

Vessels for liquid samples – 150mL – 1000 mL;
Vessels for algae samples (controlled LED lighting) – 1000ml.

Dimensions - Control units:

12 channel respirometer: 60 × 60 × 60 cm;
24 channel respirometer: 60 × 60 × 120 cm;

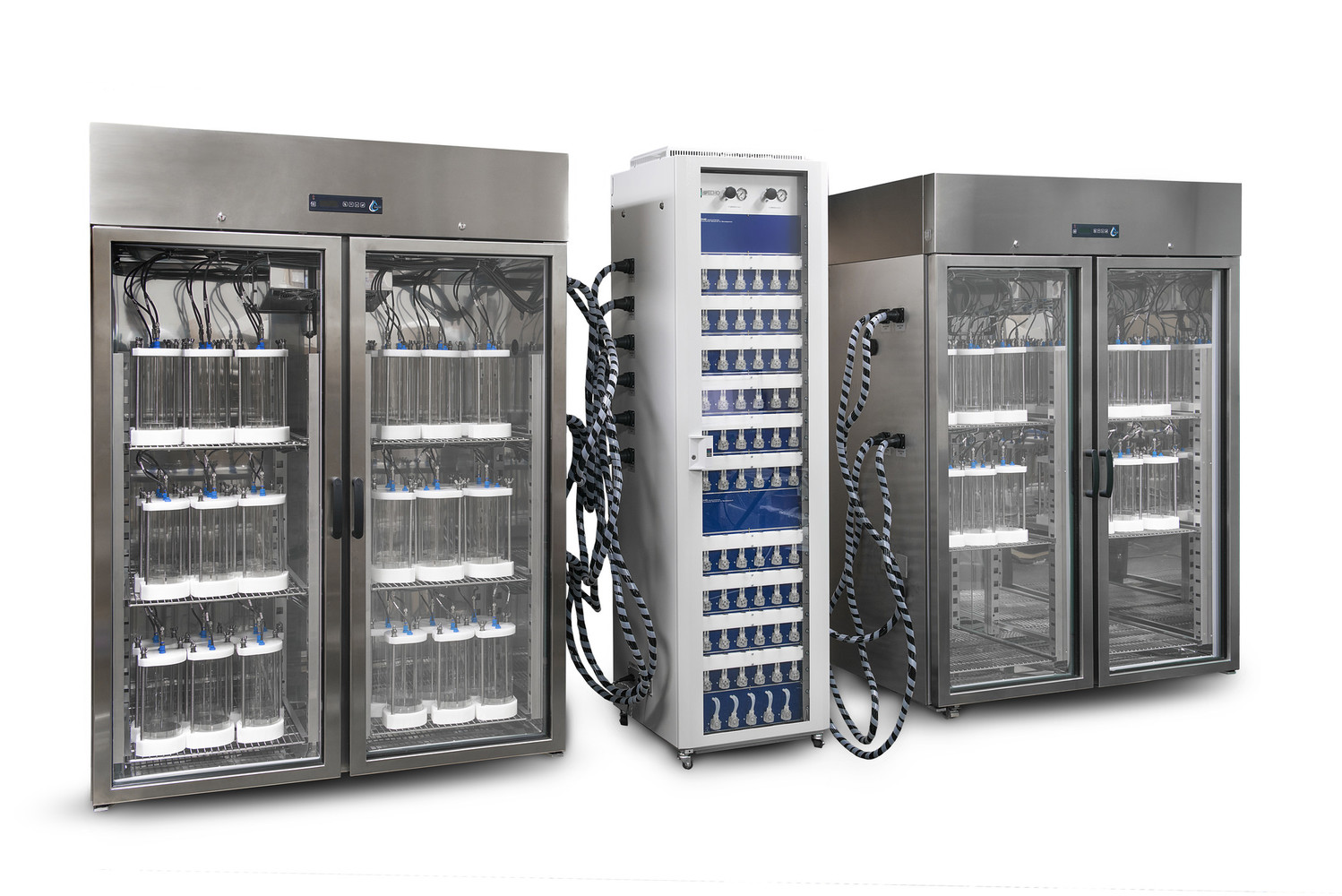

36, 48 & 60 channel respirometer: 60 × 60 × 200 cm.

Dimensions - Thermostatic chambers:

12 channel respirometer: 60 × 60 × 150 cm;
24 channel respirometer: 80 × 80 × 200 cm;
36 channel respirometer: 150 × 86 × 200 cm;
48 & 60 channel respirometer: 150 × 86 × 200 cm (2 ×).

Standards

ISO 14855–1 & ASTM D5338; Determination of the ultimate aerobic biodegradability of plastic materials under controlled composting conditions;
ISO 17556:2019; Determination of the ultimate aerobic biodegradability of plastic materials in soil by measuring the oxygen demand in a respirometer or the amount of carbon dioxide evolved;
ISO 14852:2021; Determination of the ultimate aerobic biodegradability of plastic materials in an aqueous medium. Method by analysis of evolved carbon dioxide;
ISO 16929:2021; Determination of the degree of disintegration of plastic materials under defined composting conditions in a pilot-scale test;
ASTM D6691–17; Standard Test Method for Determining Aerobic Biodegradation of Plastic Materials in the Marine Environment by a Defined Microbial Consortium or Natural Sea Water Inoculum;
OECD 301B; Biodegradability of the material by evaluating the production of CO₂ over a minimum of 28 days in a liquid environment;
ISO 23977, ISO 18830, ISO 19679, ISO 22403, ISO 22404 and many more.
