Soil Gas Flux Analyser - SOIL FLUX
Measure Fluxes of different gases from the soil
Portable and automated soil flux analysers are designed for soil respiration measurement and CO₂ flux monitoring. The systems enable simultaneous measurement of gas fluxes of CO2, O2, CH4, and other gases across a wide range of environments, including forests, agricultural fields, landfills, and other areas.
Applications
- Flux CO2 from soil;
- Flux CO2 from compost;
- Flux CO2 from landfills;
- Identifying ground and underground spills – pollution in ecological disasters;
- Agronomy;
- Post-fire ground activity;
- Uranium mines mapping;
- Carbon fingerprint & greenhouse gases;
- Gas presence on playground areas.
Advantages

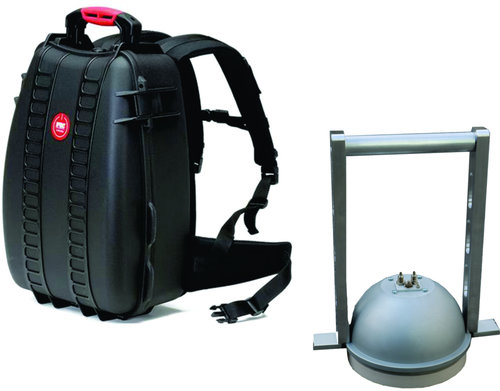

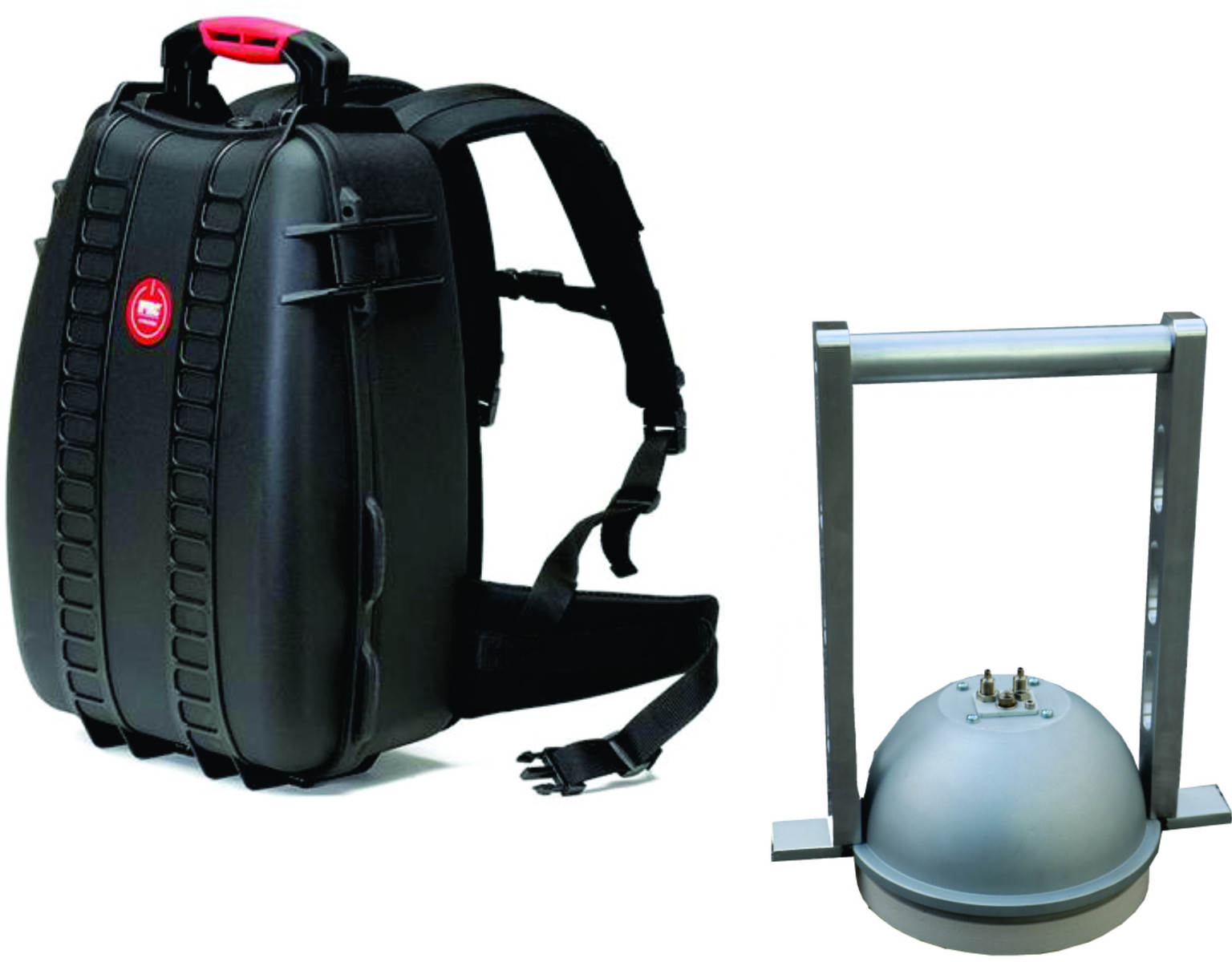

- Portable or stationary (automatic);
- Compact and lightweight;
- Map location (inbuilt GPS module);
- Up to 5 different gas sensors with different ranges;
- Operation via tablet, mobile phone or PC.
Technical specifications
- Operating conditions; Portable version: +5...+40 °C %mylt% 90 % RH, non-condensing;

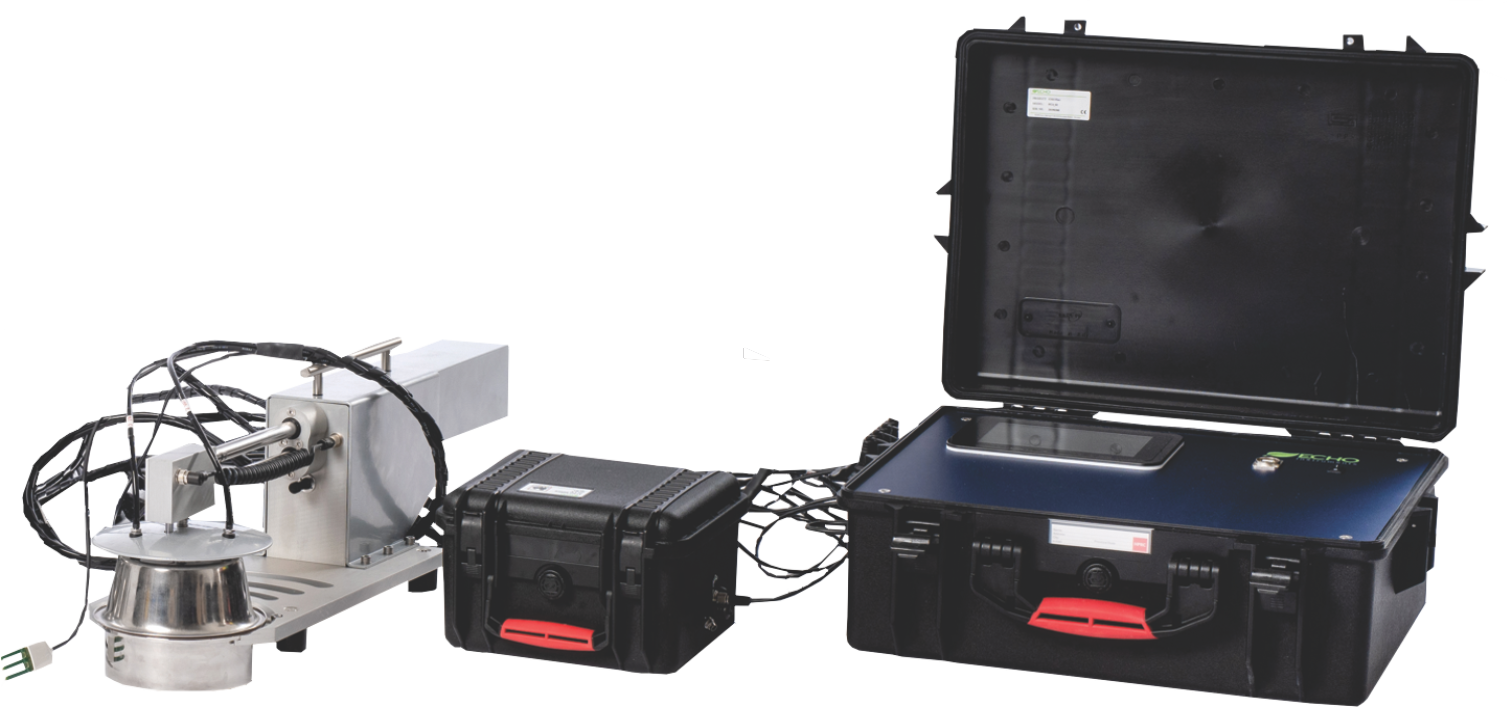

- Operating conditions automatic: +10...+40 °C %mylt% 90 % RH, non-condensing;
- Storage conditions: +20...+40 °C %mylt% 90 % RH, non-condensing;
- Power supply: Li-ion battery 90–264 VAC, 47–69 Hz;
- Gas sensors: O2, CO2, CH4, other sensors on request;

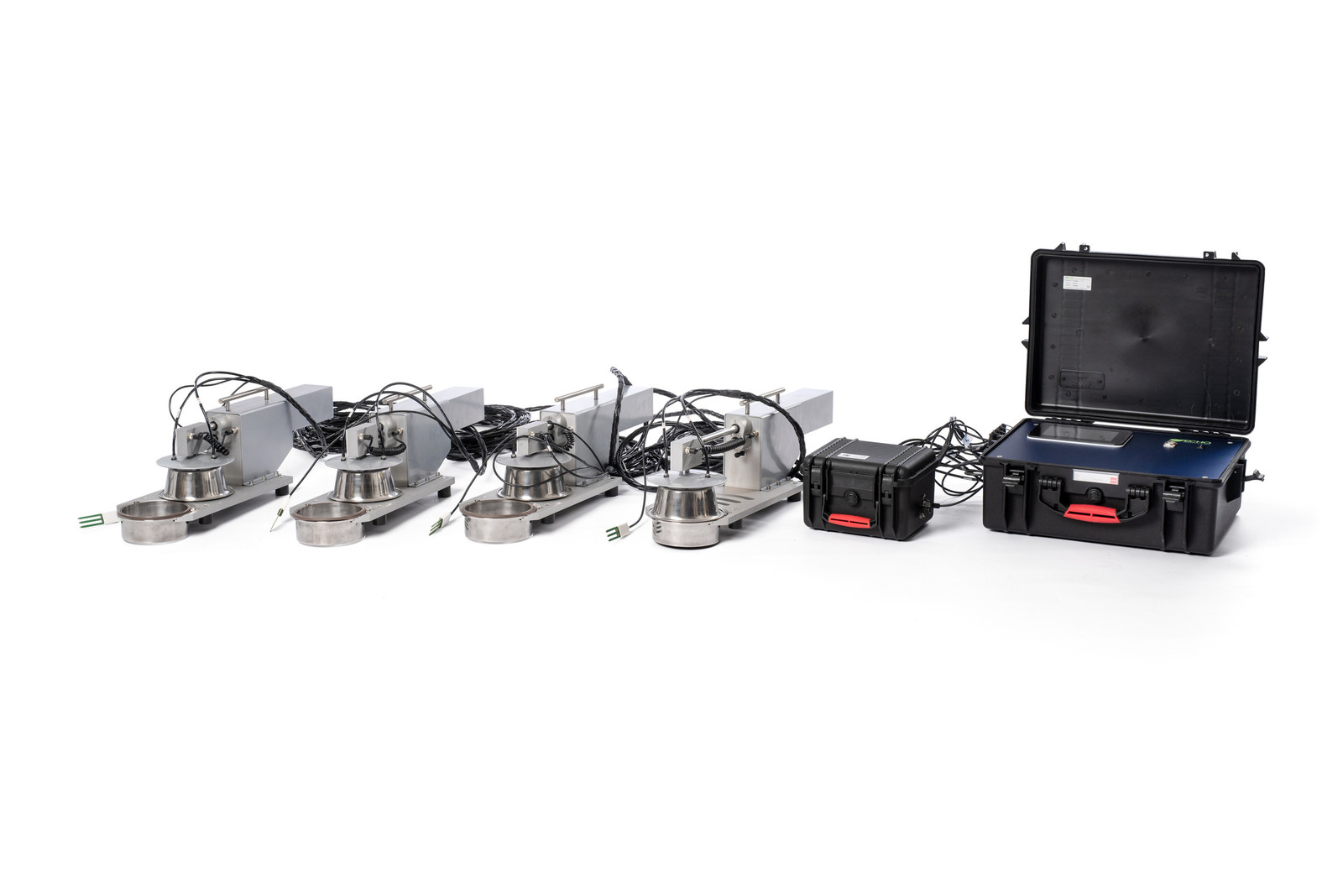

- Automatic system: 4 / 8 channels;
- Tablet: Bluetooth, GPS, Windows platform.
Modularity
Various gas sensors measure the gas concentration inside the measuring head. Software calculates the flux directly on-site. Accurate GPS module determines the exact location of the measurements.
Download
- ECHO-INSTRUMENTS_Soil-Flux [pdf, 644 KB]
