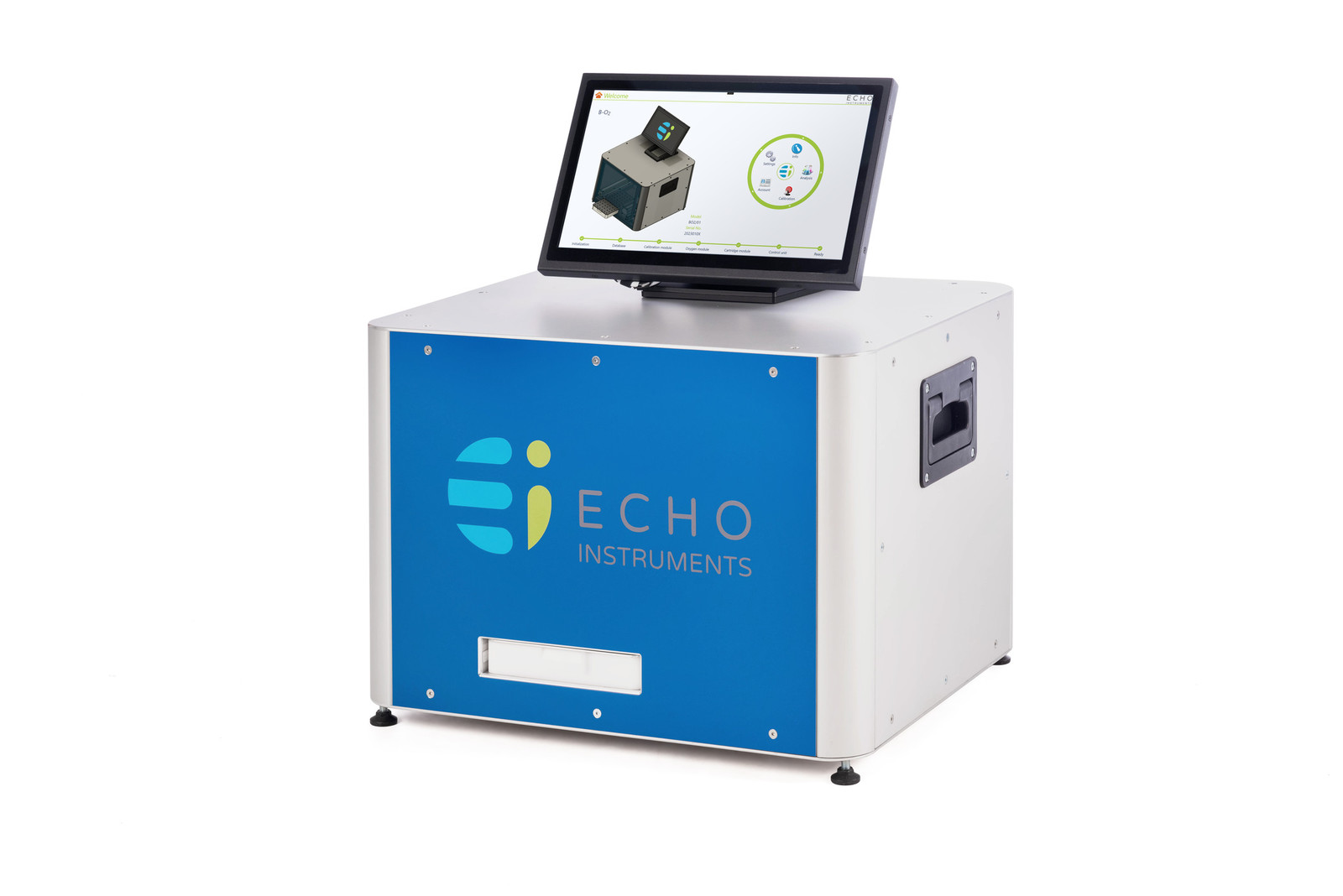

B-O2 oxygen analyzer

Automatic oxygen analyzer

Fully automatic optical O2 analyzer for determination of O2 concentration in blister packs and other MAP packaging for pharmaceutical industry in quality control and production lines. The analyzer can analyze 1–6 blisters at once, with up to 72 measuring points in one serial measurement. Device is compliant to pharmaceutical standards 21 CFR Part 11 and Industry 5.0.

Applications

  • O2 concentration in blister packs. Measuring 1–6 blisters at once, with up to 72 measuring points in one serial measurement.

Advantages

  • Measurements in headspace;
  • No sample extraction;
  • High accuracy;
  • No O2 consumption during measurements;
  • Automatic calibration;
  • IQ & OQ documentation;
  • 21 CFR Part 11 compliant.

Technical specifications

  • Needles with ø: 0.4 mm / 0.8 mm;
  • Measuring range: 0–25 % O2;
  • Accuracy: ± 0.1 % O2;
  • Limit of detection: 0.1 % O2;
  • Operating temperature range: 5–40 ºC;
  • High precision positioning: %mylt% 0.02 mm;
  • Interface: USB, RS485, Ethernet.

Modularity

  • Optical sensors with optical transmitter installed combined with intelligent software instantly measure the O2 concentration in very small headspaces.
  • Devices provide reliable accurate and reproducible analysis that eliminates possibility of human errors. The measuring procedure is simple, fast and efficient. The user interface is designed for easy operation. The operator selects the required type of analysis, i.e. single point analysis or serial measurements. Statistical analysis report is automatically generated by the software, compliant to 21 CFR Part 11. Special designed cartridges enable fast and precise measurements of different types of blisters.

Standards

  • 21 CFR Part 11;
  • Industry 5.0.
